UDF Filter Cartridge – Efficiently Removes Odors, Residual Chlorine, and Organic Pollutants

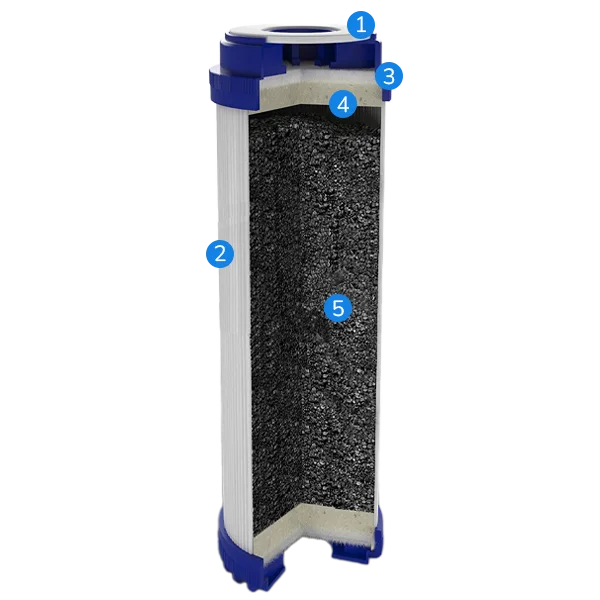

1. White rubber ring: It prevents water leakage caused by gaps due to water pressure after the filter cartridge is installed; this end should be installed facing upwards.
2. Housing
3. Non-woven fabric: Located at both ends of the filter cartridge, it is used to intercept large particles of impurities in the water.
4. Filter cotton layer: It further removes large particles of impurities in the water, protecting the core activated carbon layer.
5. Activated carbon filter material: It has strong adsorption capacity, and efficiently removes odors, residual chlorine, and organic pollutants from the water.

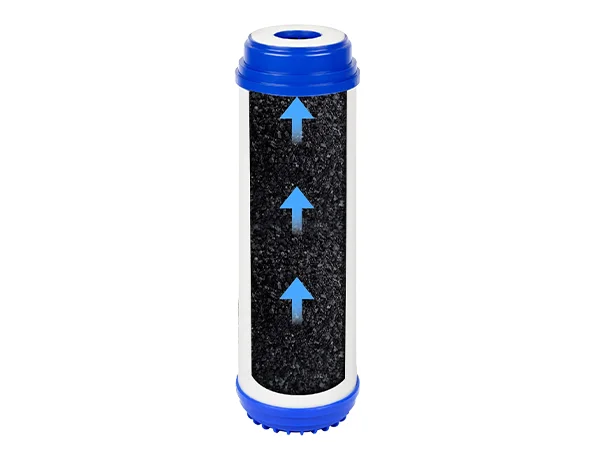

The raw water enters from the inlet of the filter cartridge, first passing through the non-woven fabric layer and the filter surface layer, intercepting large particles of impurities. Subsequently, the water flows into the granular activated carbon layer, where harmful substances in the water are effectively removed through the adsorption action of the activated carbon. After purification treatment, clean water flows out from the outlet, ensuring users can drink water without worry.

Since the two ends of the UDF filter cartridge are different, there is an installation direction. The water flow can only achieve the filtering effect by flowing from the direction of the hollow end cap to the direction of the white rubber ring end cap.
